CNODE NEMA IOT
OVERVIEW
OVERVIEW

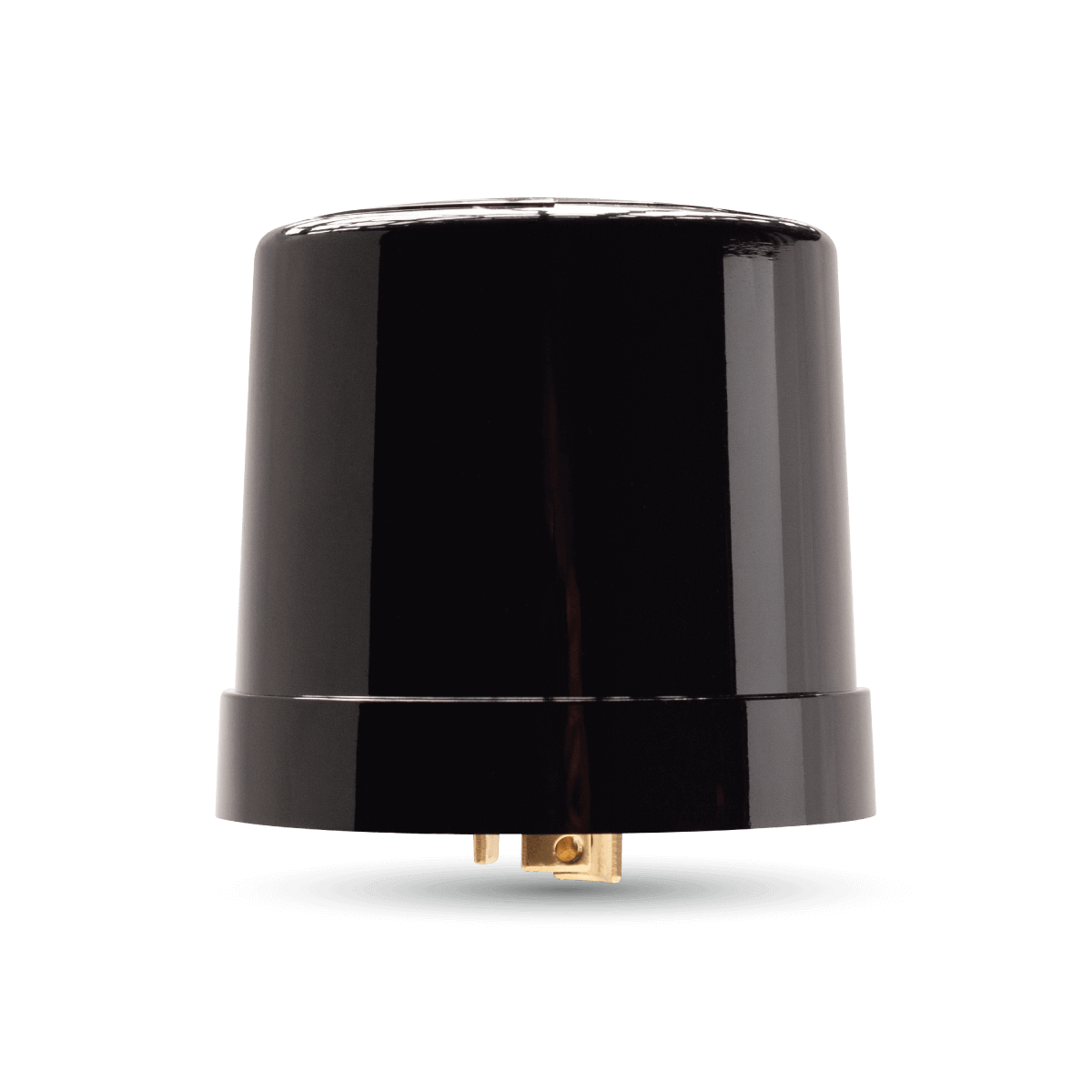

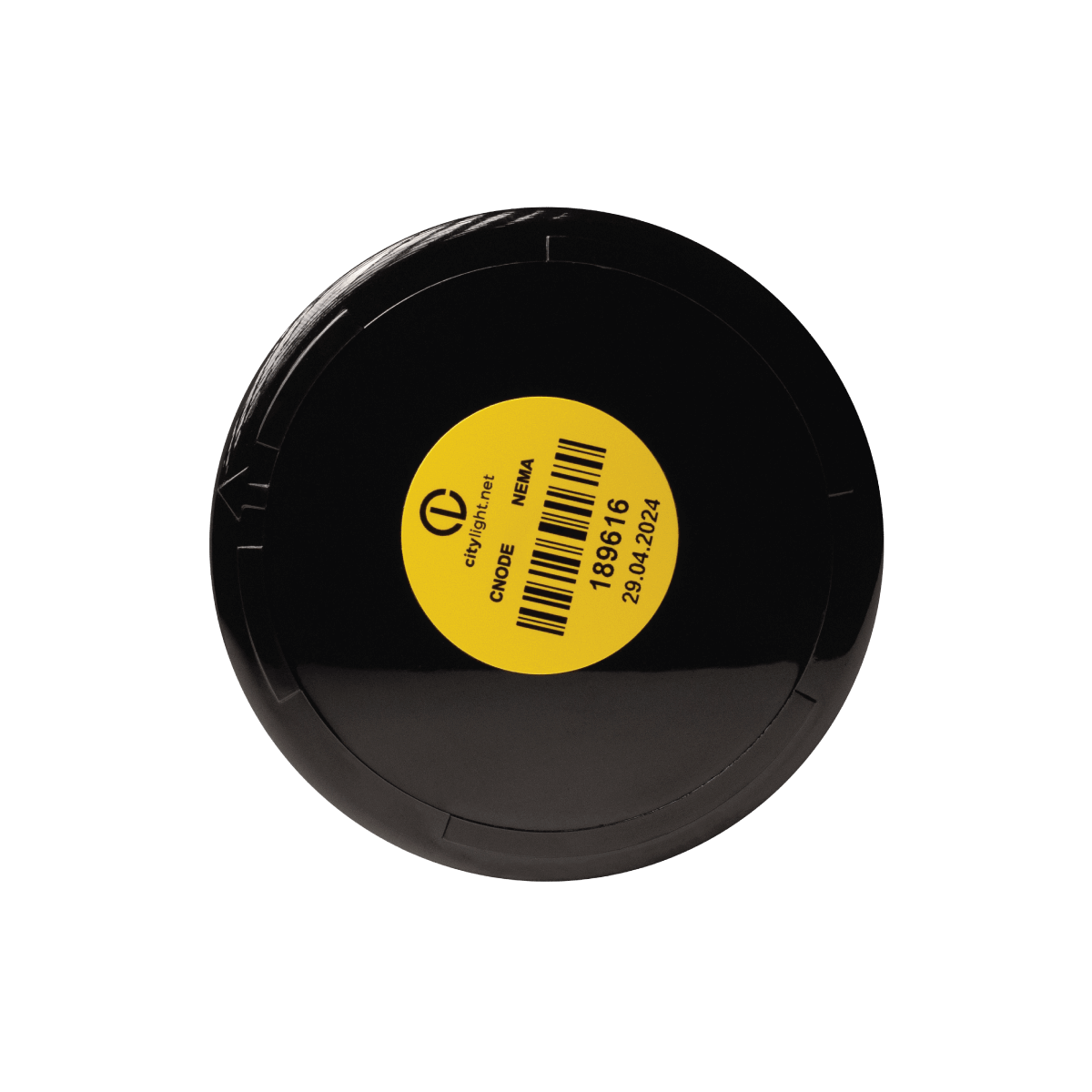

CNODE NEMA IOT is a versatile and easy to mount outdoor luminaire controller based on the ANSI C136.41 standard, ensuring compatibility with a wide range of luminaire vendors. Built-in energy measurement chip and support for DALI2, D4i, SR, and 0-10V interfaces allows to switch lights ON and OFF, dim them, monitor energy consumption and track the performance of luminaires. With no additional gateway infrastructure required and worldwide open standard cellular network coverage (2G/3G/4G LTE), this durable and compact controller with IP66 ingression class is perfect for outdoor installation.
SPECIFICATION
SPECIFICATION

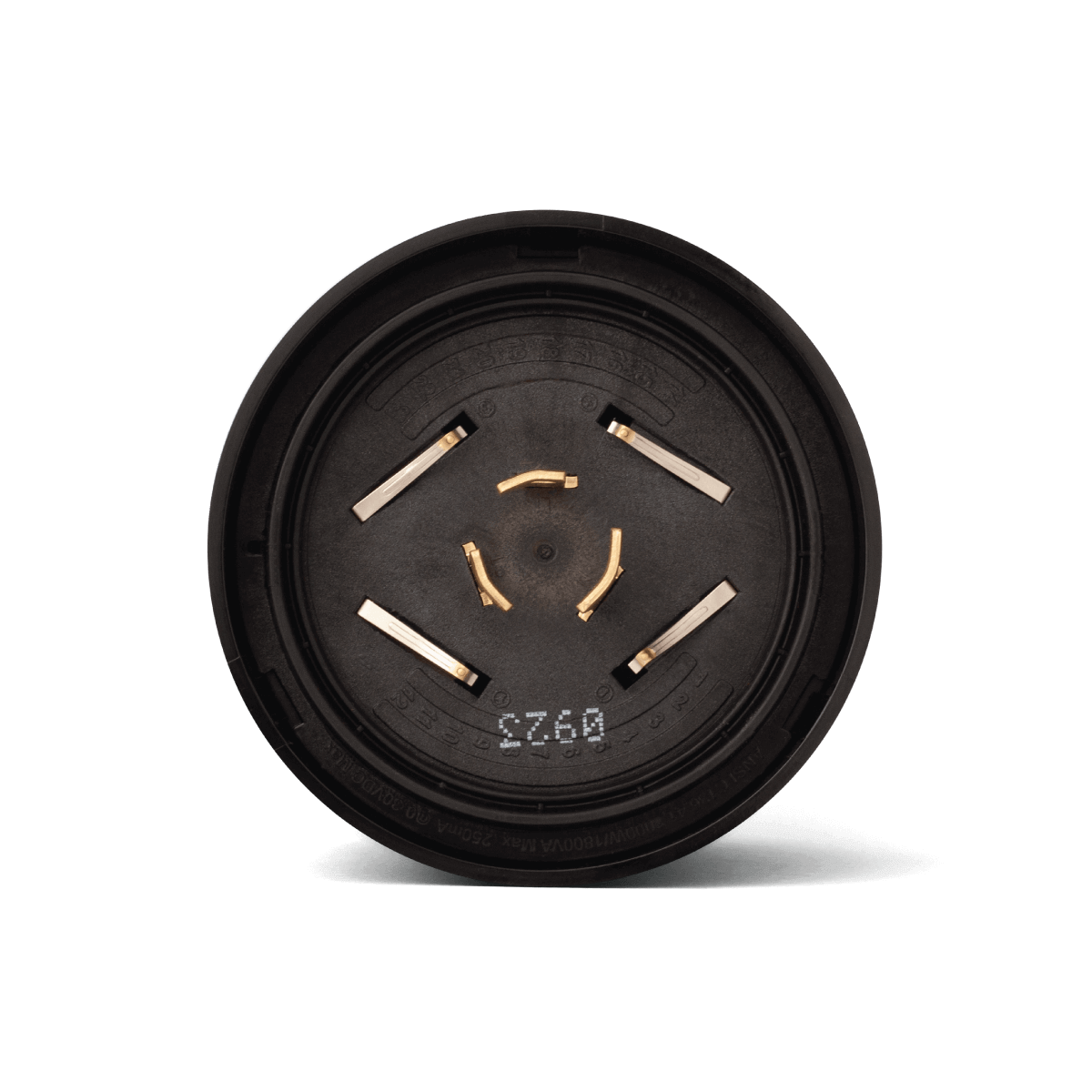

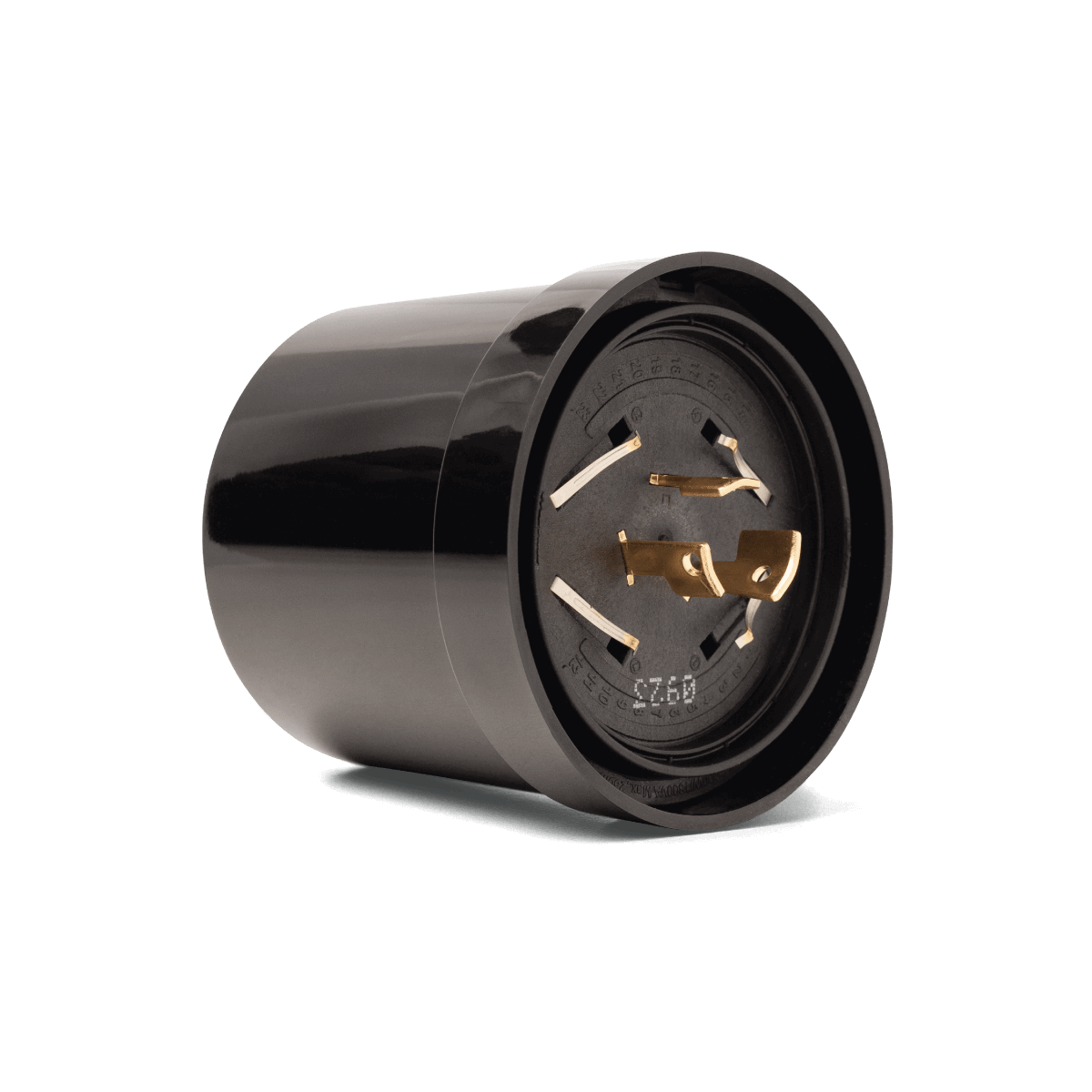

Socket:NEMA standard (ANSI 136.10; ANSI 136.41)
Dimensions and weight:Diameter 88mm, Height 71mm, Weight 220g
Enclosure:Polycarbonate material, UV resistant, Rubber isolation class II
Impact resistance:IK09
IP rating:IP 66
Power supply:230 VAC (-/+15%)
Max load:500 W
Surge protection:6kV
Interfaces:DALI 2.0 /D4i /SR /0-10V
Communication:4G LTE/GSM/EDGE
Operating temperature:from -40 °C to +75 °C
FEATURES
FEATURES
• Versatile, ANSI C136.41 compatible with many luminaire vendors.
• Energy measurement, DALI2/D4i/SR/0-10V support for switching, dimming, monitoring.
• No gateway required, global 2G/3G/4G LTE coverage for real-time operation.
• Durable, compact design with IP66 rating for outdoor use.
• Easy, quick installation saves time and effort.
• Cost-effective solution with no monthly communication fees.
CERTIFICATES
CERTIFICATES
Directive 2014/35/EU Low Voltage Directive (LVD)
EN 62311:2008
EN 61347-1:2015 (IEC 61347-1)
EN 61347-2-11
EN 62368-1:2014/AC:2015
EN 62368-3:2020
EN 60364-4-443:2016
EN 61984:2009
EN 60529
Directive 2014/30/EU Electromagnetic compatibility(EMC)
EN 301-489-1 V2.1.1
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 301 489-3 V2.1.1
EN 301 489-52 V1.1.0
EN 55015:2013+A1:2015
EN 61547:2009
Directive 2014/53/EU Radio Equipment (RED)
EN 300 440 V2.1.1
EN 301 511 V12.5.1
EN 300 328 V2.1.1
EN 300 220-2 V3.1.1
Directive 2011/65/EU RoHS directive
Directive 2012/19/EU WEEE directive

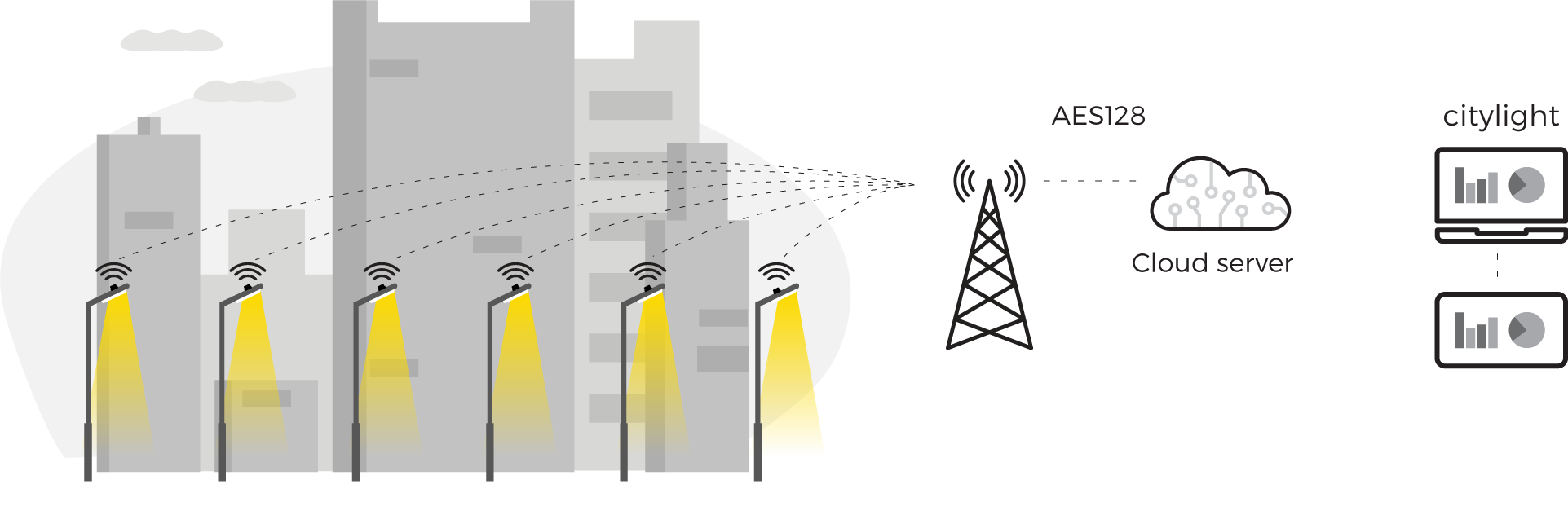

How it works?
Works with standard 3 GPP cellular network 2G/LTE, no getaways, fallback to 2G/LTE suitable.
How it works?
Additional features
Tilt sensor
Tilt sensor
Built-in tilt sensor technology that detects pole knockdowns and alerts the maintenance team.
GPS receiver
GPS receiver
Effortless luminaire controller installation and registration and auto-location.
DALI Relay
DALI Relay
Control switching ON/OFF times for light decorations or add billboard connected to light pole.
Air Quality sensor
Air Quality sensor
Remote Air Quality Index (AQI) monitoring using connected wireless sensors.
Automatic Meter Reading
Automatic Meter Reading
Remote Utility Meter reading over Wireless M-Bus OMS industry standard protocol.
